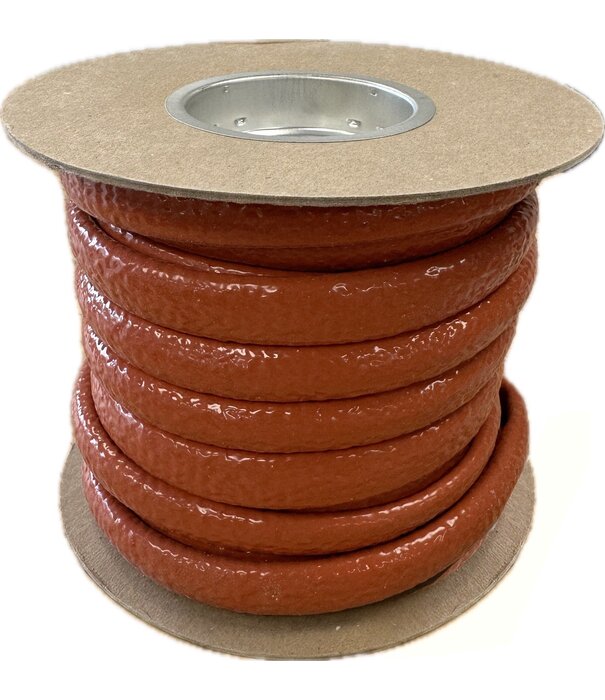

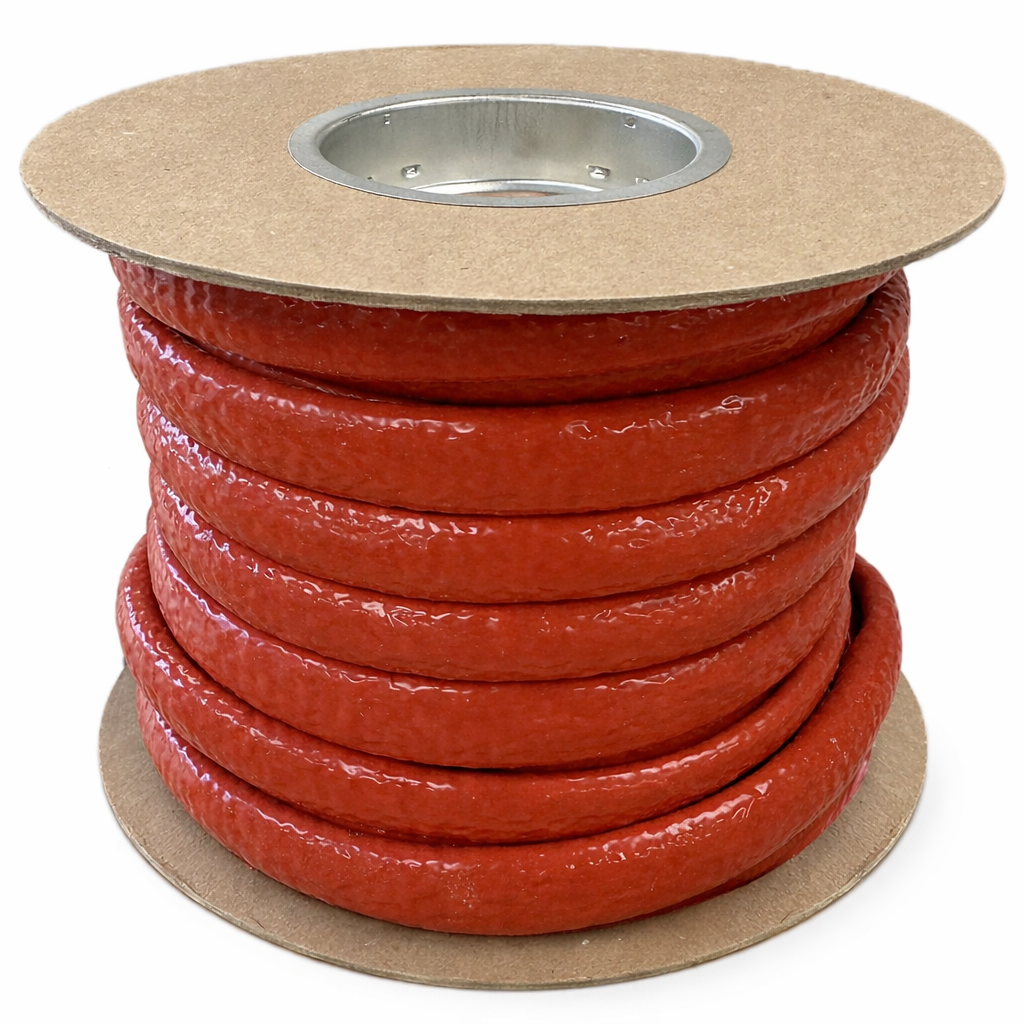

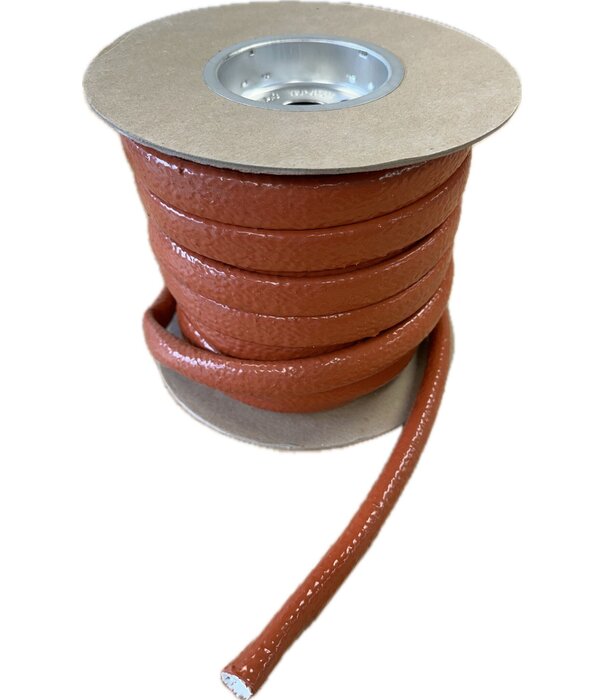

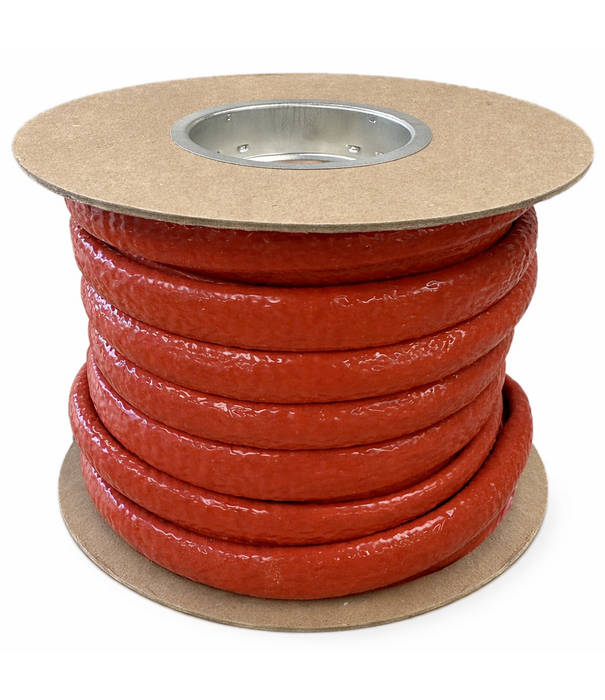

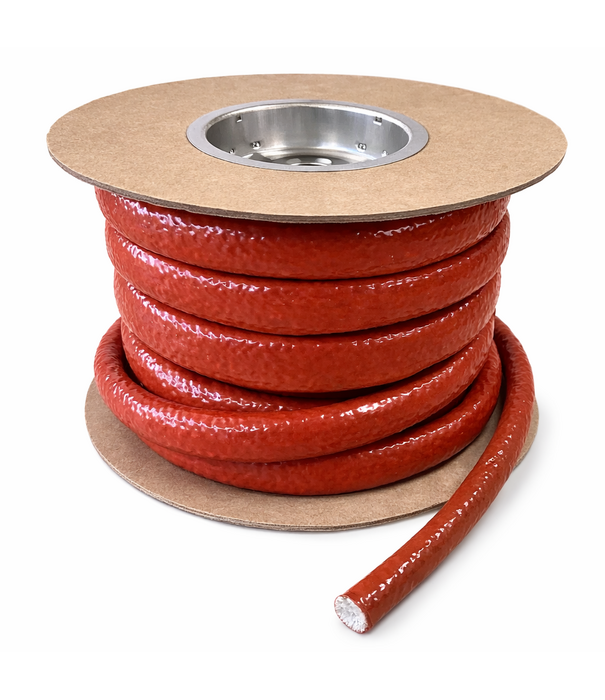

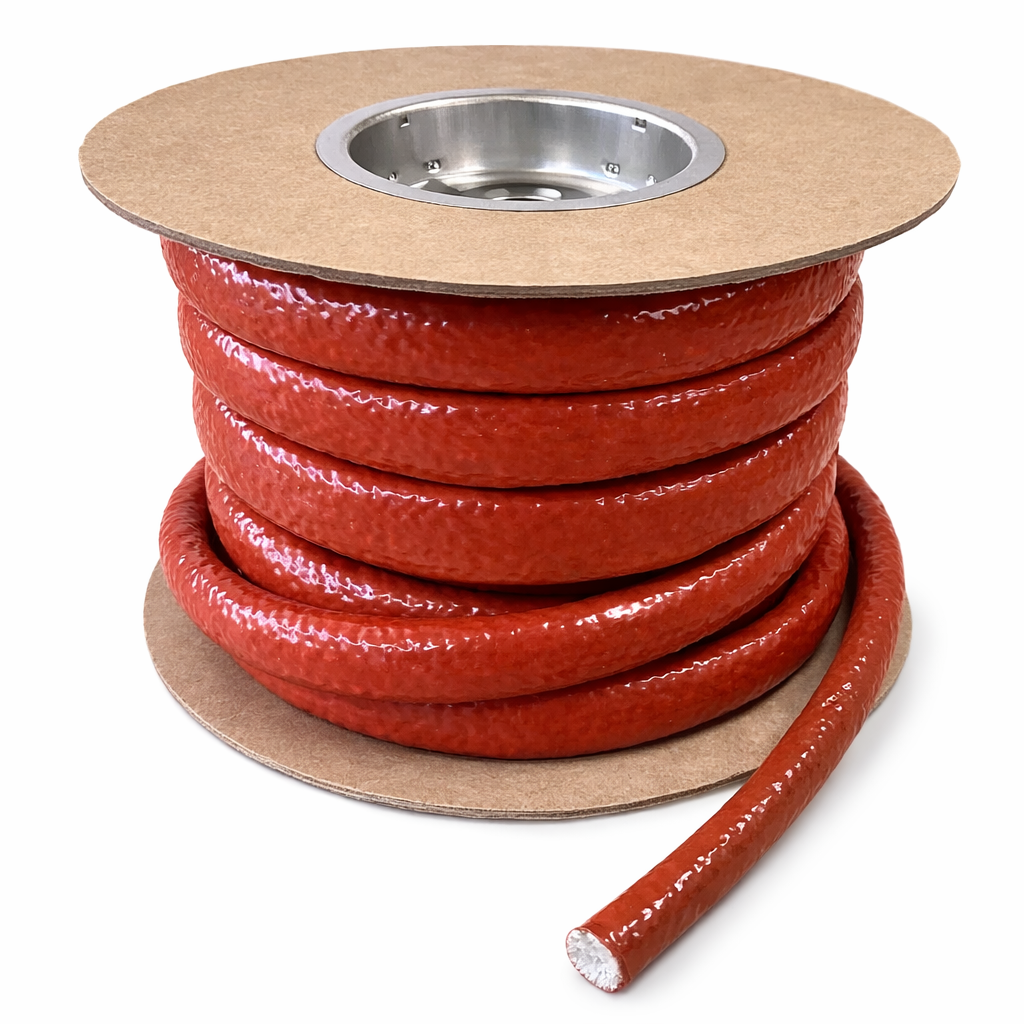

Ø 10 mm x 15m | Silicone E-Glass Fire Sleeve - Red

High-quality heat-resistant silicone insulation sleeve, supplied on a 15m roll.

Application

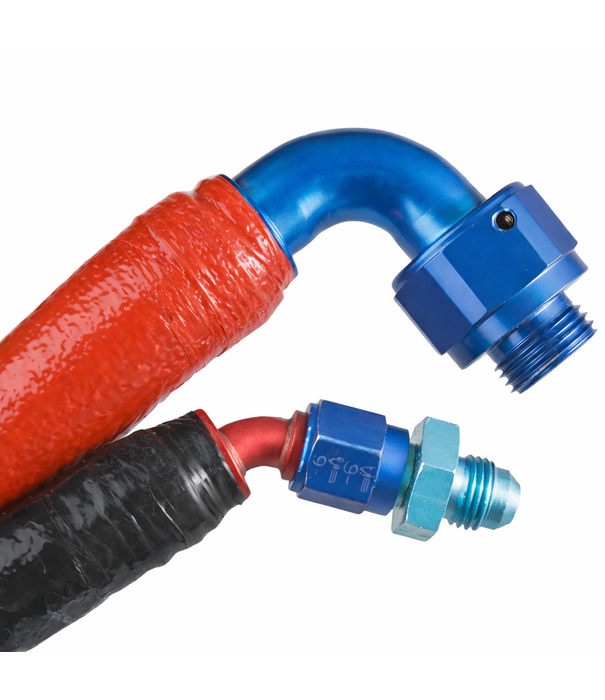

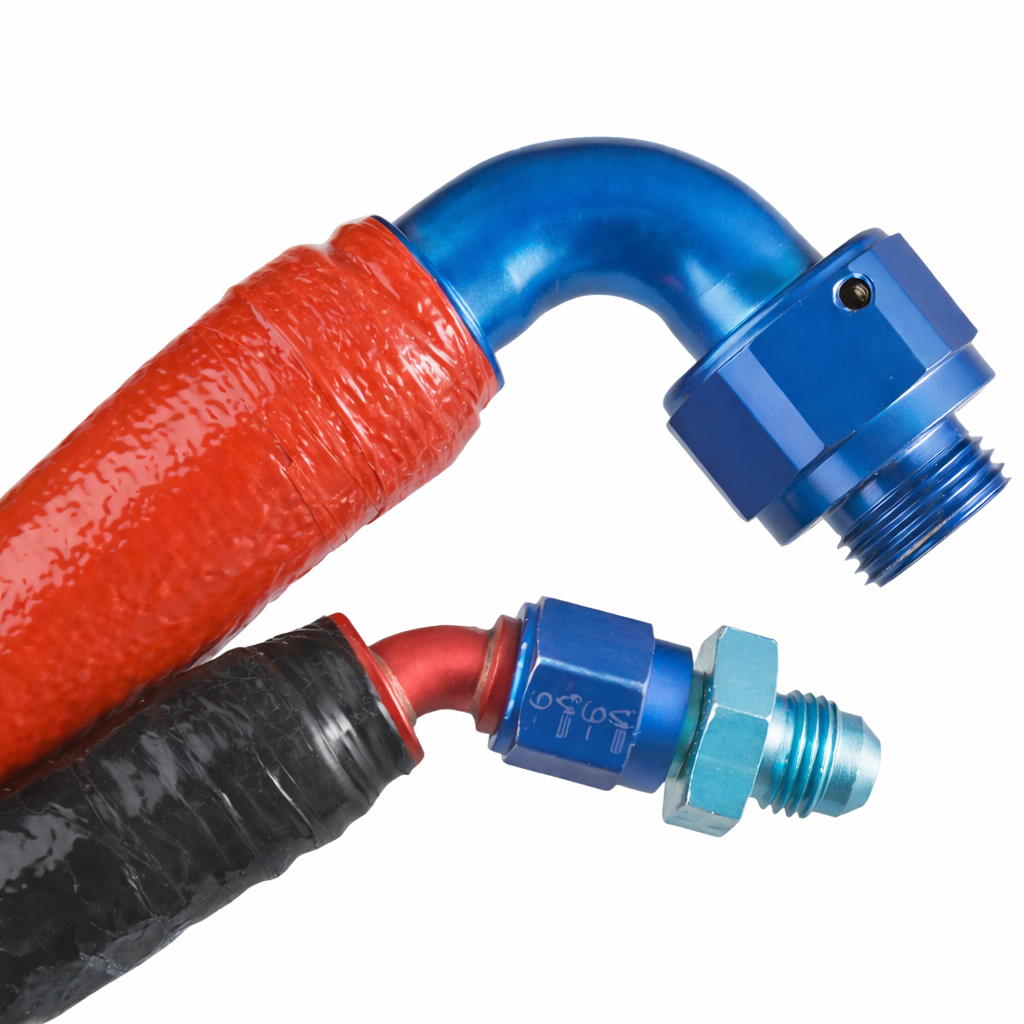

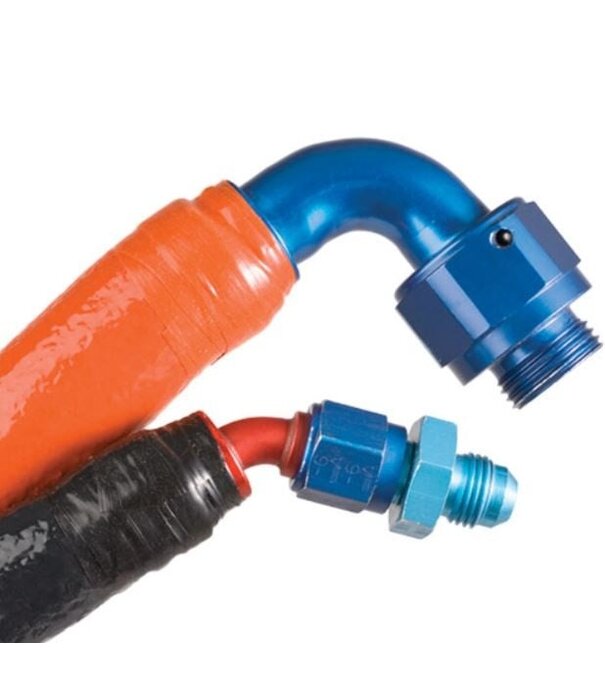

• Protects hoses from liquid metal and welding spatter, slag, and resin formation that can affect flexibility and shorten lifespan.
• Protects users from severe burns from metal braided hoses, valves, manifolds, exhaust systems, etc.
• Reduces heat and energy loss and prevents overheating of the surroundings near hot hoses and other pipeline components.
• Suitable for: aluminum foundries, iron foundries, glass factories, machine rooms, hot oil lines, cutting equipment, extrusion companies, aviation, bronze foundries, shipyards, steam applications, welding machines and equipment, and power plants.

Temperature Range

• Continuous: -54°C to +260°C
• 15-20 minutes: +1000°C
• 15-30 seconds: +1650°C

Materials

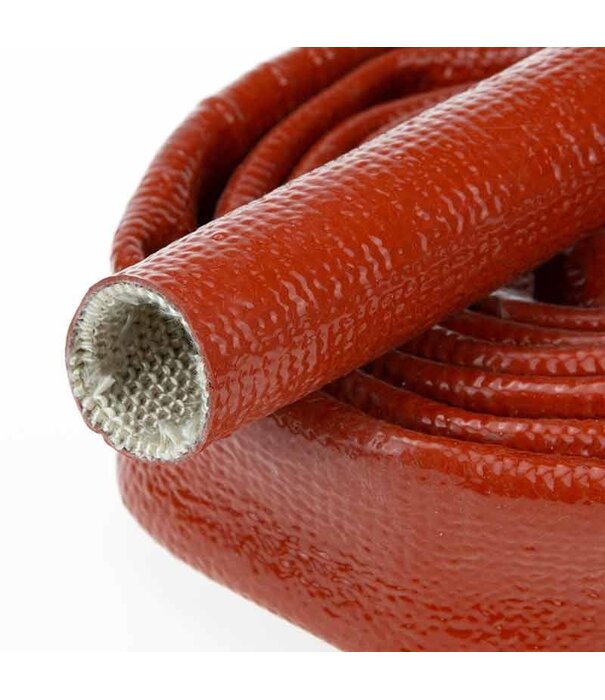

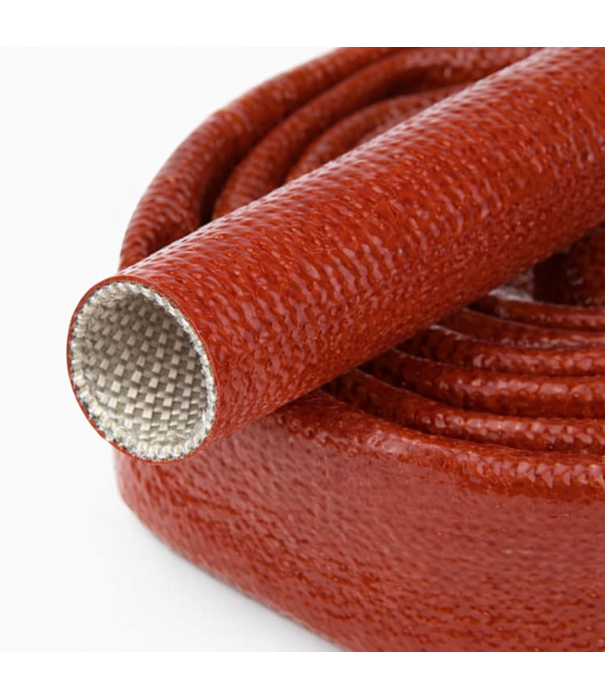

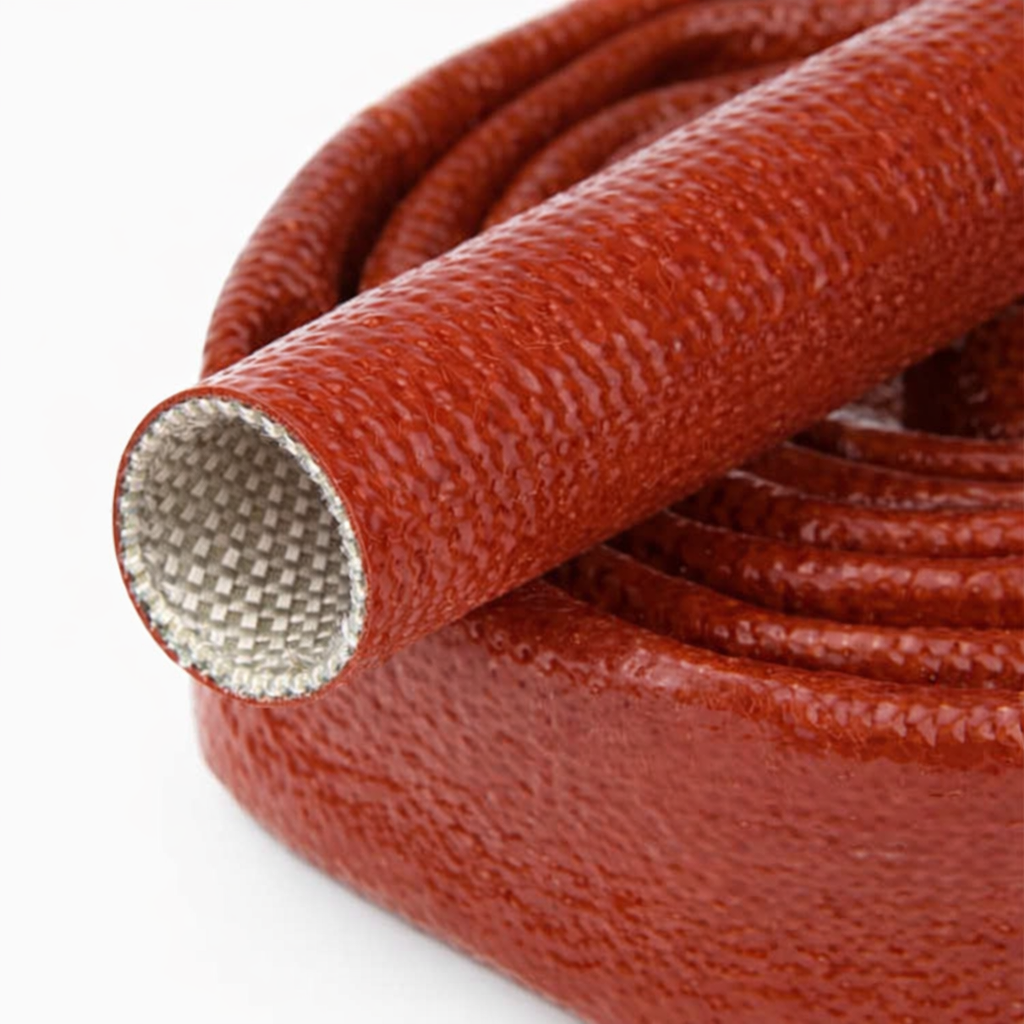

• Knitted fiberglass, coated with silicone rubber

Design

• Flexible Signal
• red color due to high dosage of iron oxide for increased heat resistance
• Aging resistant
• Resistant to oils, fuels, and thermal fluids

Approval

• DNV-GL Certified to 800°C/30mins. (ISO15540 & ISO15541)

On Request

On request, a version can also be supplied with all the approvals listed below.

• SAE AS1072E Compliant
• MSHA Certified for use in underground mines
• UL 1441 Certified
• VW1 Flame Test Certified
• BS EN 373 Molten Splash Tested
• BS EN 388 Abrasion Tested
• BS EN ISO 6940 Flame Resistance Tested
• BS EN ISO 6530 Oil Resistance Tested
• BS 2576 Tensile Strength Tested
• DIN 45545 Low Smoke Toxicity
• DIN 54837/5510-2 Rail Vehicle Certified for Resistance to Combustibility
• DIN 5659-2/5510-2 Rail Vehicle Certified for Toxicity
• LNE French Rail Certification STM-S-001; Class F0
• DIN EN45545-2:2013-08 Rail Certification

Documents & Downloads

TDS - Silicone E-Glass Fire Sleeve

Item numbers per size

• HSS010R15 - Ø 10mm x 15m
• HSS016R15 - Ø 16mm x 15m
• HSS019R15 - Ø 19mm x 15m
• HSS025R15 - Ø 25mm x 15m
• HSS035R15 - Ø 35mm x 15m
