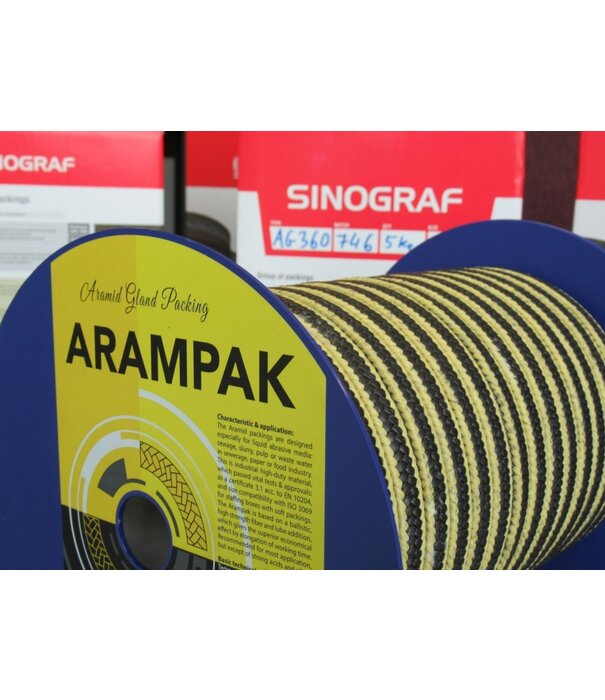

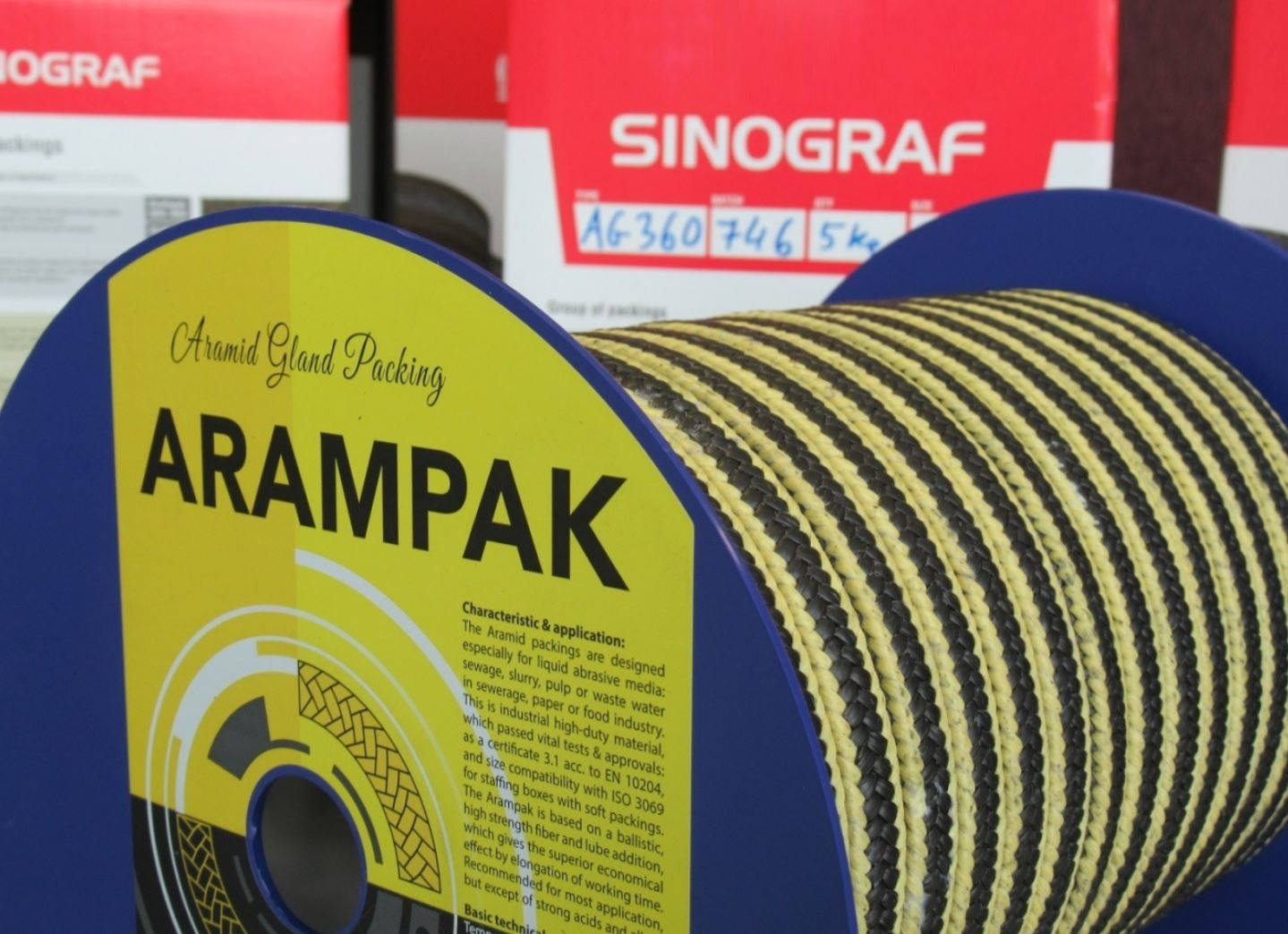

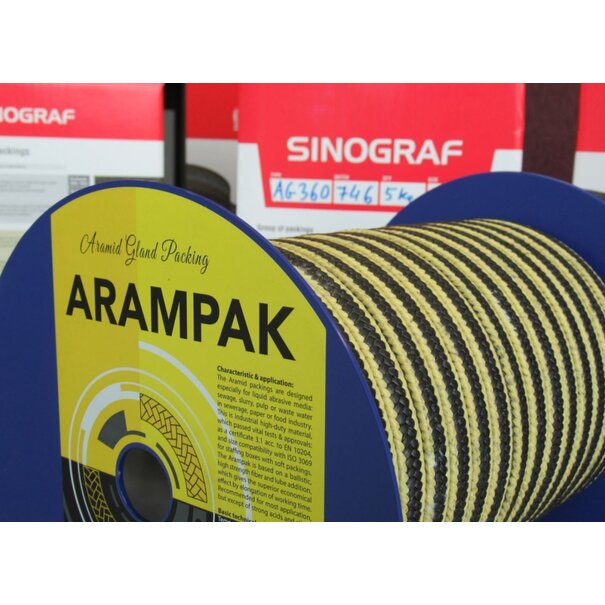

Tefapak AG 360 Gland Packing

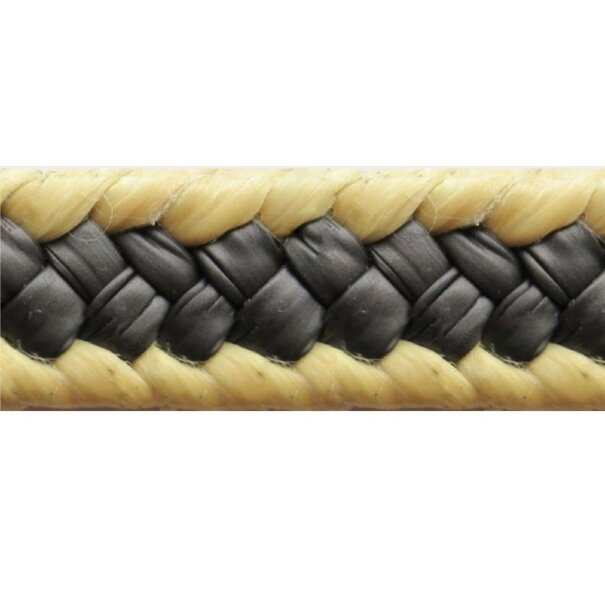

The AG 360 gland packing is a hybrid packing made from graphited PTFE yarn with aramid fiber reinforcement. Arampak AG has the characteristic corner braid, which gives higher durability along this rope. Moreover, impregnation with PTFE dispersion seals space between filaments, reduces friction and improves sliding properties.

Technical Properties

• Material: Graphited PTFE yarn with aramid fiber
• Color: Yellow / Black
• Temperature Range: -100°C to +260°C
• Pressure Resistance:
  Pumps: max. 30 bar
  Valves: max. 600 bar
  Rotary applications: max. 200 bar
• pH Range: 3 – 12
• Velocity:
  Pumps: 20 m/s
  Valves: 4 m/s
  Rotary applications: 2 m/s
• Maximum Load (pV): max. ~400 bar·m/s
• Average Density: ~1.4 g/cc
• Min. shaft/sleeve hardness: ~50 HRC
• Available in square profiles from S6 to S30 mm
