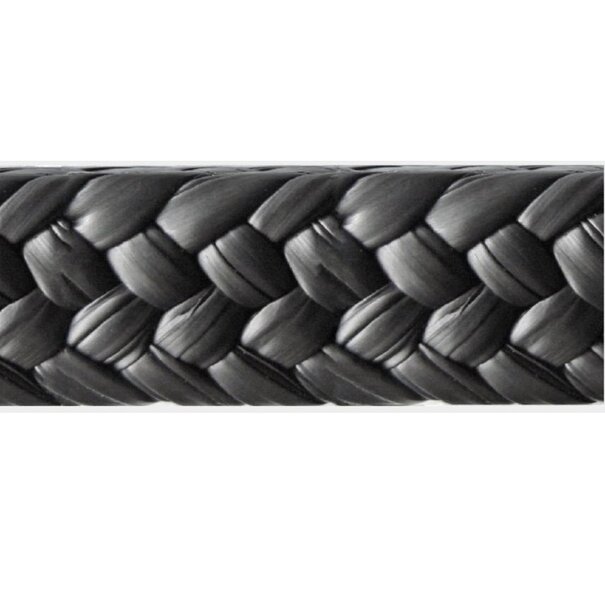

Tefapak GRF 260 Gland Packing

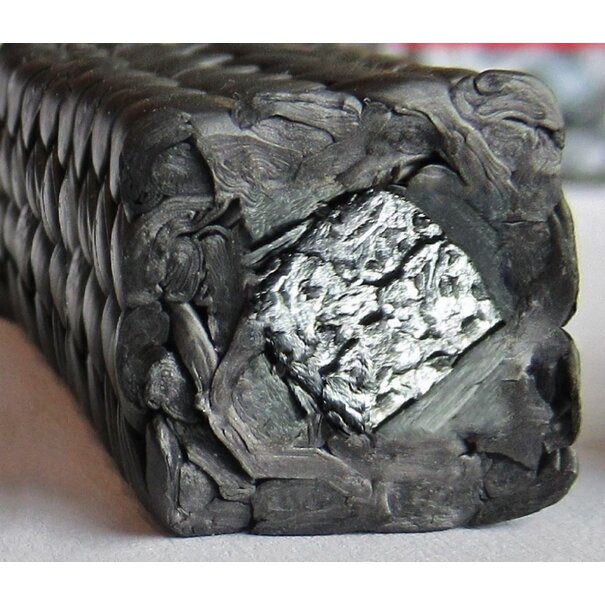

The GRF 260 gland packing is based on gPTFE, i.e., graphitized, expanded PTFE. The GRF packing is made of PTFE foil thin strips braided with graphite addition. The high graphite content improves thermal conductivity, sliding properties and reduces friction wear, which significantly extends the service life in dynamic applications.
Technical Properties
- Material: gPTFE (graphitized, expanded PTFE)
- Color: Black
- Temperature Range: -200°C to +260°C
- Pressure Resistance:
Pumps: max. 20 bar
Valves: max. 400 bar
Rotary applications: max. 200 bar - pH Range: 0 – 14
- Velocity:
Pumps: 20 m/s
Valves: 3 m/s
Rotary applications: 2 m/s - Maximum Load (pV): max. ~300 bar·m/s
- Average Density: ~1.5 g/cm³
- Min. shaft/sleeve hardness: ~30 HRC
- vailable in square profiles from S4 to S30 mm
DOCUMENTEN & DOWNLOADS
Technical datasheet: Datasheet document
Installation instructions: Installation instructions document
Specifications
| Material | Graphitized, expanded PTFE |
| Length | m | Varies by diameter |
| Width | mm | 4 tot 30 mm |
| Height | mm | 4 to 30 mm |
| Max. direct heat | °C | 260 |
| Color | Black |
| Self adhesive | No |
