Product information
Description

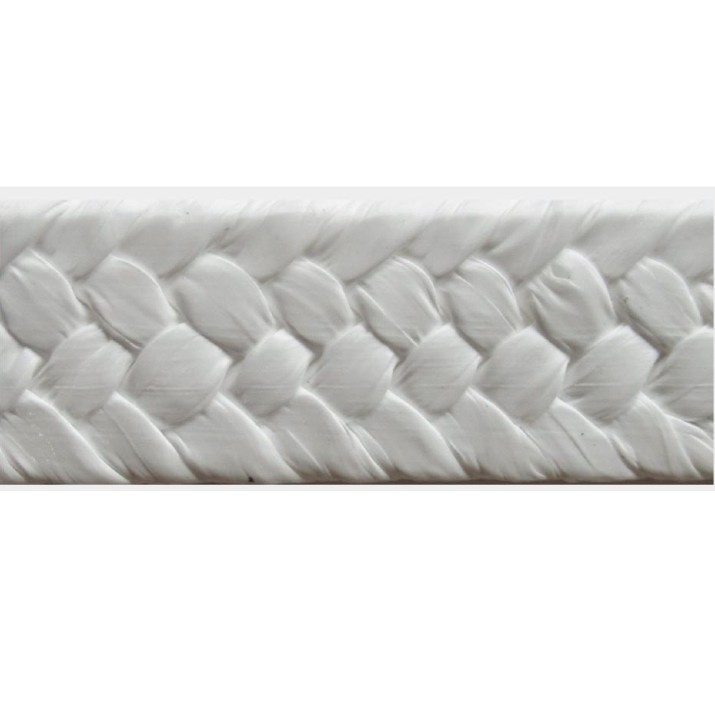

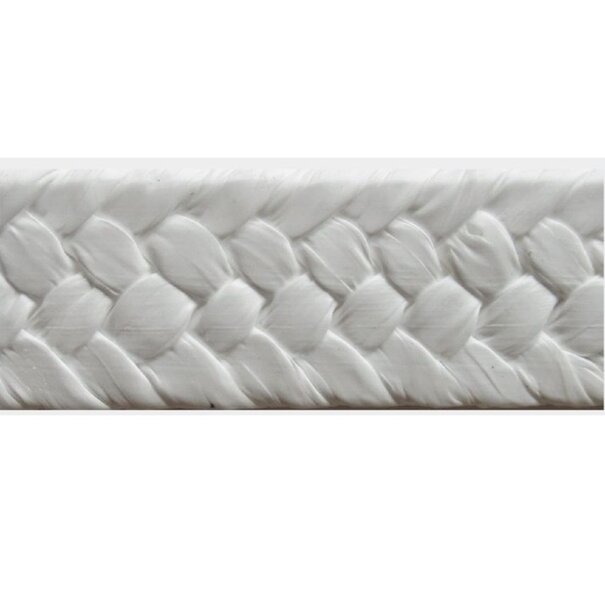

Tefapak PUR 200 Gland Packing
The PUR 200 gland packing in white color is made of 100% pure PTFE obtained through suspension polymerization. PTFE strands are expanded, oriented, and then formed into an elastic yarn, which is the basic raw material for braiding of packing with square, rectangular, and trapezoidal profiles.
Technical Properties
- Material: 100% pure PTFE
- Color: White
- Temperature Range: -200°C to +260°C
- Pressure Resistance:
Pumps: max. 20 bar
Valves: max. 400 bar
Rotary applications: max. 150 bar - pH Range: 0 – 14
- Velocity:
Pumps: 15 m/s
Valves: 3 m/s
Rotary applications: 2 m/s - Maximum Load (pV): max. ~150 bar·m/s
- Average Density: ~1.4 g/cc
- Min. shaft/sleeve hardness: ~30 HRC
- Available in square profiles from S3 to S40 mm
DOCUMENTEN & DOWNLOADS
Technical datasheet: Datasheet document
Installation instructions: Installation instructions document
Specifications
| Material | 100% pure PTFE |
| Length | m | Varies by diameter |
| Width | mm | 4 tot 30 mm |
| Height | mm | 4 to 30 mm |
| Max. direct heat | °C | 260 |
| Color | White |
| Self adhesive | No |
